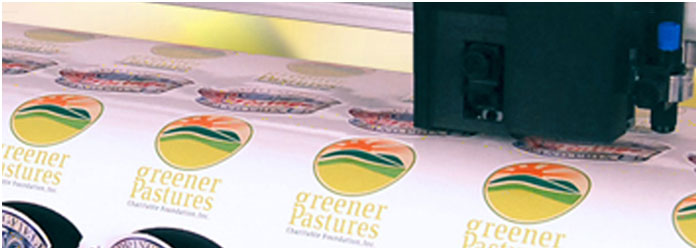

GRAPHTEC FC8000 Series - High Performance
wit
Specifications

Item

FC8000-60

FC8000-75

FC8000-100

FC8000-130

FC8000-160
Maximum Cutting
Area 		24in x 164ft (610mm x 50m) 3Oin x 164ft (762mm x 50 m) 42in x 164ft (1067mm x 50 m) 54in x 164ft (1372mm x 50 m) 64in x 164ft (1625mm x 50 m)
Compatible Media
Widths 		2 in to 30.3 in (50mm to 770mm) 2 in to 36.2 in (50mm to 919 mm) 2 in to 48.2 in (50mm to 1224 mm) 2 in to 60.2 in (50mm to 1529 mm) 2 in to 72.5 in (50mm to 1841 mm)
Maximum Media
Thickness 		59.1mil (1.48 mm)
Maximum Cut
Speed		 58.5in/s(1485mm/s)diagonal
Programmable Cutting Forse 20 gf-600 gf in 48 steps
Sheet Cuter Max Thikness 11 mil including media realease liner(backing)
Programmable Resolution GP-CL™: 0.1/05/.025/.01 mm; HP-GL®: 0.001 in (0.025mm);
GP-GL™: 254, 508, 1016, 2540; HP-GL® 1016
Compatible Media Types Self-adhesive vinyl film, diamond grade, tluorescent film, reflective film, AmberlithTM, RubylithTM, sandblast resist rubber, high-intensity reflective film, window tint film, paint protection film, automotive paint protection film, etc.
Interface USB 2.0 High-speed / Serial RS-232C
Optional Ethernet interface (OPH-A23) available
Command Modes OP-CLTM, HP-CL® (Selectable in command menu or auto detection)
Display Panel 3” graphic LCD with comprehensive icon-corresponding soft keys
Shipping Weight with Stand 106 lbs (48 kg) 115 lbs (52 kg) 133 lbs (60 kg) 150 lbs (68 kg) 161 lbs (73 kg)
Unit Dimensions with Stand 52.3x28x48 in (1328x711 x1219mm) 58.2x28x48 in (1478x711 x1219mm) 70x28x48 in (1778x711 x1219mm) 81.8x28x48 in (2077x711 x1219mm) 92x28x48 in (2336x711 x1219mm)
GRAPHTEC FC8000 AKZ — High Performance Automotive Styling
wit
Specifications

Item

FC8000-60
AKZ

FC8000-75
AKZ

FC8000100
AKZ

FC8000130
AKZ

FC8000160
AKZ
Maximum Cutting
Area 		24in x 164ft (610mm x 50m) 3Oin x 164ft (762mm x 50 m) 42in x 164ft (1067mm x 50 m) 54in x 164ft (1372mm x 50 m) 64in x 164ft (1625mm x 50 m)
Compatible Media
Widths 		2 in to 30.3 in (50mm to 770mm) 2 in to 36.2 in (50mm to 919 mm) 2 in to 48.2 in (50mm to 1224 mm) 2 in to 60.2 in (50mm to 1529 mm) 2 in to 72.5 in (50mm to 1841 mm)
Maximum Media
Thickness 		59.1mil (1.48 mm)
Maximum Cut
Speed		 58.5in/s(1485mm/s)diagonal
Programmable Cutting Forse 20gf-600 gf in 48 steps
Sheet Cuter Max Thikness 11 mil including media realease liner(backing)
Programmable Resolution GP-CL™: 0.1/05/.025/.01 mm; HP-GL®: 0.001 in (0.025mm);
GP-GL™: 254, 508, 1016, 2540; HP-GL® 1016
Compatible Media Types Window tint film, automotive paint protection film, self-adhesive vinyl, paint mask
Interface USB 2.0 High-speed / Serial RS-232C
Command Modes GP-GL™, HP-GL® (Selectable in command menu or auto detection)
Display Panel 3” graphic LCD with comprehensive icon-corresponding soft keys
Shipping Weight with Stand 106 lbs (48 kg) 115 lbs (52 kg) 133 lbs (60 kg) 150 lbs (68 kg) 161 lbs (73 kg)
Unit Dimensions with Stand 52.3x28x48 in (1328x711 x1219mm) 58.2x28x48 in (1478x711 x1219mm) 70x28x48 in (1778x711 x1219mm) 81.8x28x48 in (2077x711 x1219mm) 92x28x48 in (2336x711 x1219mm)
