Cris
Product Description

Smart High-speed Drying System

Stable Running in High Speed

Separated Print Head Voltage-adjustment

Separated Precision in Adjusting And Printing

Triple-stage Ink-supply System

Ensures Reliabilty Of Ink Supply And Printing

Aprint Software Easy To Operate

Better Compatibility With Printer

Technical Specifications

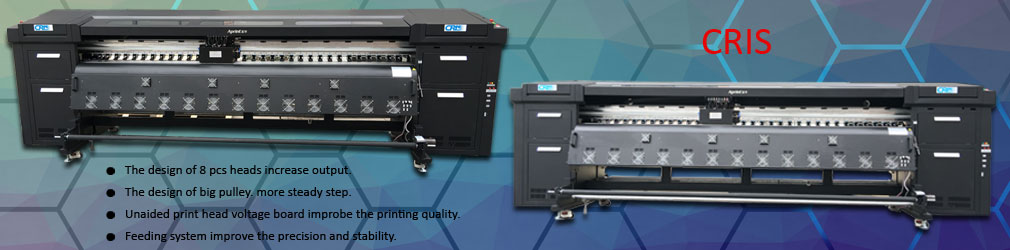

Model CRIS
Print Head & QuantitySG 1024 10PL/ 25PL 4 Heads
Print Head & QuantityPrinting Mode Output (M2/H)
CRIS CRIS
CRIS with 4H Polarize
2 PASS105210
3 PASS70140
4 PASS52105
Max Media Width3300MM
Max Printing Width3300MM
Media TypePVC/Vinly/Mesh/Fiag Etc
Ink Color4 Colors (CMYK)
CharacteristicNtemal Criculation System/Positive Pressure Cleaning/Single Channel Cleaning
Drying TypeInfrared/Fan (Optional)
Windows SystemWindows XP/7 (64bit Or 32bit)
InterfaceUSB 2.0
Printing DriverAprint RIP
PowerAC 110 OR 220V 50HZ/60HZ 3000W
Working ConditionTemperature : 200C ~ 28 0C Humidity : 40%-70%
Dimension/WeightNet(MM)/Weight(KG)Gross(MM)/Weight(KG)
4600*877*1375MM/750KG4700*977*MM/800KG
