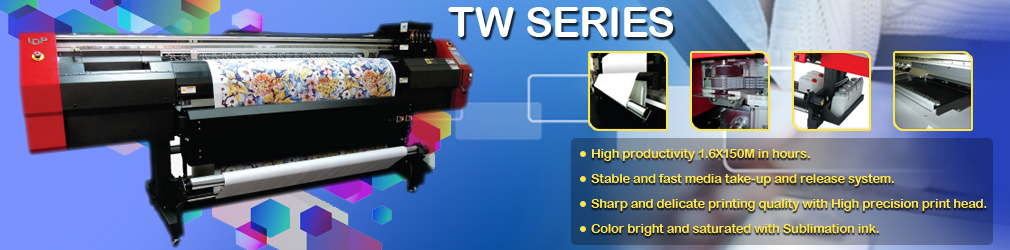

Sublimation Printer
TW SERIES
Features

High productivity 1.6X150M in hours

Stable and fast media take-up and release system

Sharp and delicate printing quality with High precision print head

Color bright and saturated with Sublimation ink

Technical Specifications
  TW1602K3 TW1604R5 TW1912R4/R5 TW3212R5
Print head KYOCERA RICOH GEN5 RICOH GEN4/GEN5 RICOH GEN5
Max. Printing Width 1.6M 63 Inches 1.6M 63 Inches 1.9M 75 Inches 3.2M 130 Inches

Function 4x1 4x2 4x3 4x3
Printing Speed
2Pass+ -- -- 63 / -- --
3Pass+ 68 50 54 / -- --
4Pass -- -- -- / 94 110
4Pass+ -- 42 45 / 75 87
6Pass+ -- 31 -- / 58 68 m2/hr

Dimension Net weight 393KG (866 Ibs) Net weight 800KG (1906 Ibs) Net weight 1000KG (2203)
Machine dimension (cm) L 325 / W 83 / H 142 cm L 373 / W 103 / H 153 cm L 514 / W 103 / H 153 cm

Packing dimension (cm) L 351 / W 112 / H 155 cm L 420 / W 112 / H 193 cm L 543 / W 112 / H 193 cm
Power consumption : 15 A 25A 35A
Power requirred Single phase 220VAC ± 10%, 50/ 60 Hz Single phase 220VAC ± 10%, 50/60Hz
Media treatment Roll to Roll with automatic media Infrared sensores Roll to Roll with automatic media infrared sensors
Max. media weight : 45Kg 130Kg
Ink : 3 liters ink tank 4 liters ink tank
Print mode: Uni-direction and Bi-direction Uni-direction and Bi-direction
Print head Cleaning : Purge clean on each channel or all ink channels Purge clean on each channel or all ink channels
Ink control system : Syphon control Negative pressure control
Print head Piezoelectric controlling ink drop, voltage and temperature Piezoelectric controlling ink drop, voltage and temperature
Working environment Temperature 200C to 300C, Humidity 40% to 70% (Recommended) Temperature 200C to 300C, Humidity 40% to 70% (Recommended)
Connecting interface RJ45 High Speed USB2.0 High Speed
Software ColorPRINT Textile, PCS ColorPRINT Textile ,PCS
