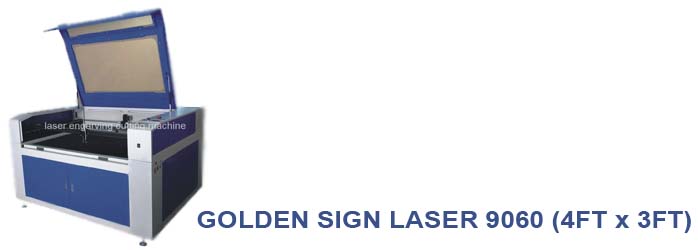

GOLDEN SIGN LASER 9060 (4ft X 3ft)
wit
Features

1. 64 DSP high speed processor: Adopts 64 DSP high speed control system, which highly improved the data processing speed and stability.

2. Support of USB and U disc: USB connect to the machine or U disc independently, which can use only one computer to control many laser machines.

3. Storage function: The main board has EMS Memory which enables the user to store more than 100 files.

4. Real time regulation: Users can regulate the laser power according to needs to improve the engraving effect.

5. Easy operation: Control panel and software system have both English and Chinese language so that satisfies the need of different custom.

6. Rotary clamps for engraving cylinders (optional): can engrave not only sheets, but also roll materials and cylinders such as pencil vase, flute, bottle and so on.

Application of Industry

Advertising signs and logos, crafts and gifts, crystal ornaments, paper cutting techniques, relief, the printing plate, leather, clothing, embroidery, decoration, frame productions.

Applicable Materials

ABS double color sheet, acrylic sheet, wood, glass, paper, leather, cloth, plastic, rubber, marble, ceramic tiles and other nonmetallic materials.

Technical Specifications

Model

GS 6040 GS 9060

Laser type

Hermetic and detached CO2 laser tube

Laser power

60W/80W

Engraving speed

65000mm/min

Resetting positioning accuracy

0.01mm

Resolution radio

0.025mm

Highest Scanning Precision

2500DPI

Smallest character engraving

Chinese 2.0mm×2.0mm,English 1.0mm×1.0mm

Character 2.0mm*2.0mm,English 1.0mm*1.0mm

Graphic format

Al, Plt, Cdr, Dxf, Dst, Nc, BMP, JPG, DST, PLT, DXF

Power supply

220V/50HZ

whole power

<1000W

Download PDF »»
