GRAPHTEC FC4500 Series - Compact Flatbeds



Maximum Cutting Area 23.2in x 16.9in (590mm x 430m)
Max Media Width 19.6in (500mm) (Y-axis direction)
Media Hold-Down Method Electrostatic Adhension and Adhesive Sheet
Maximum Cut Speed 30 in/s(750mm/s)in 23 steps
Cutting Force Tool1:Max.600gfin 48 steps
Tool2:Max.300gfin 30 steps
Mechanical Resolution 0.005mm(5µm)
Programmable Resolution GP-GL™ mobe:1.0/0.5/0.025/0.01mm, HP-GL®:0.025mm
Compatible Media Types Marking film (vinyl, fluorescent, and reflective), Stiff paper/card (for stencils, etc.) up to 0.5mm thick*1
Pollystyrene foam sheets up to 0.8mm thick*3, Standblast rubber sheets up to 1.0mm thick*2
Microflute board (F/Ggrades), Clear sheets for plastic boxes, High-intensity reflective film*3
Arms Advanced Registration Mark Sensing System-Reverse-side cutting and creasing with Arms, Copy function, Creasing function, Repeat cut function
Interface USB 2.0 High-speed / Serial RS-232C
Command Modes GP-GL™, HP-GL® emulation(selected by menu)

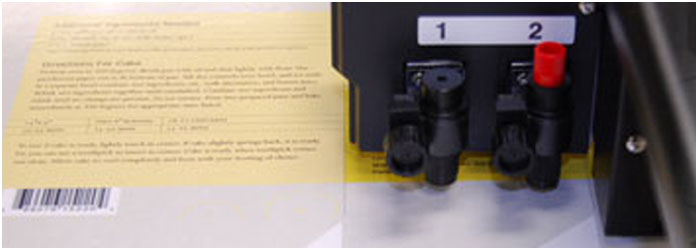

Tool Holders 2
Tool Types Tool1:Cutter blade, Creasing/scoring tool
Tool2:Pens(Water-based fiber-tip pen, oil based ball point pen)
Unit Dimensions 33.7x30.7x7.9in (856x780x200mm)
Shipping Weight 42 lbs (19kg)
Optional stand Shipping Weight Not Available

*1 The CB15U or CB15U-K30 cutter blade is used.

*2 The CB15U-K30 cutter blade is used.

*3 The CB15UA cutter blade is used.
